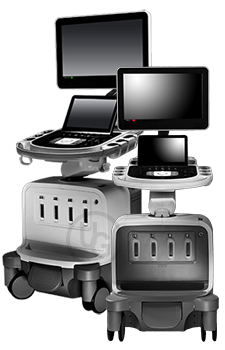

Here is a full list of the parts that we stock for the Philips Epiq 7 & Epiq 5 ultrasound systems.
call 1-844-561-4919
| Description | Part Number(s) |
|---|---|
| Acquisition Control Board (ACB) | 453561634542 453561634543 453561787681 |
| Acquisition Module | 453561368032 453561368033 453561368034 453561368035 453561495831 453561495832 453561622163 |
| Channel Board (CB) | 453561635665 453561635666 453561738041 453561738042 453561704242 453561704243 453561704244 453561704245 |
| Power Regulator Board (PRB) | 453561617886 453561617887 453561717001 453561717002 453561717003 453561799432 453561823211 |
| Transducer Select Board (TSB) | 453561438804 453561438805 453561438806 |
| E-Box Assembly | 453561494384 453561743591 453561743592 453561743593 453561734851 453561734852 453561771601 453561771602 453561799321 453561818361 |
| PC Module Assembly | 453561690041 453561690042 453561771311 453561752561 453561771591 453561798291 453561818141 |
| Audio IO (AIO) | 453561618344 453561618345 453561618347 |
| Extended I/O (EIO2) | 453561498771 453561498772 |
| Computer Module (VCM) | 453561714351 453561714352 453561771181 453561732231 453561770191 |
| Backplane | 453561635683 453561635684 453561782622 |
| Motor Controller | 453561471812 453561471813 |
| PIO PCBA | 453561799441 |
| Power Distribution PCB | 453561474703 |
| User Connector PCBA | 453561619711 453561775061 |
| Video Card | 453561653181 |
| VIO2 | 453561688433 453561688434 |
| SVIO, Full Assembly | 453561730351 |
| SVIO, Slim Assembly | 453561799781 |
| Keyboard | 453561673851 |
| Control Panel | 453561450122 453561450123 453561450124 453561450125 453561450126 453561450127 453561450128 453561450129 453561655582 453561655583 453561655584 453561655585 453561854351 |
| CP I/O Connector Board | 453561655541 |
| TGC Assembly | 453561655561 |
| TB User Zone Control Cluster | 453561655572 453561655573 453561655574 |
| Touch Panel Assembly | 453561655591 453561655592 |
| Trackball Assembly | 453561655532 |
| DVD Drive | 453561654321 453561675441 453561799091 |
| ECG Extender PCB | 453561432383 |
| LED PCBA, Left | 453561633801 453561633802 |
| LED PCBA, Right | 453561633821 453561633822 |
| Physio 5 | 453561453255 453561453256 |
| Physio 7 | 453561772111 |
| Integrated Physio (for Pulse) | 453561790281 |
| Integrated Physio 2 | 453561792231 |
| Power Supply Module | 453561435762 453561435763 453561435764 453561435765 453561435766 |
| Pulse Phono Adapter Assembly | 453561801321 |
| Rear I/O | 453561646332 |
| System Display, 21.5 in.LCD | 453561700442 |
